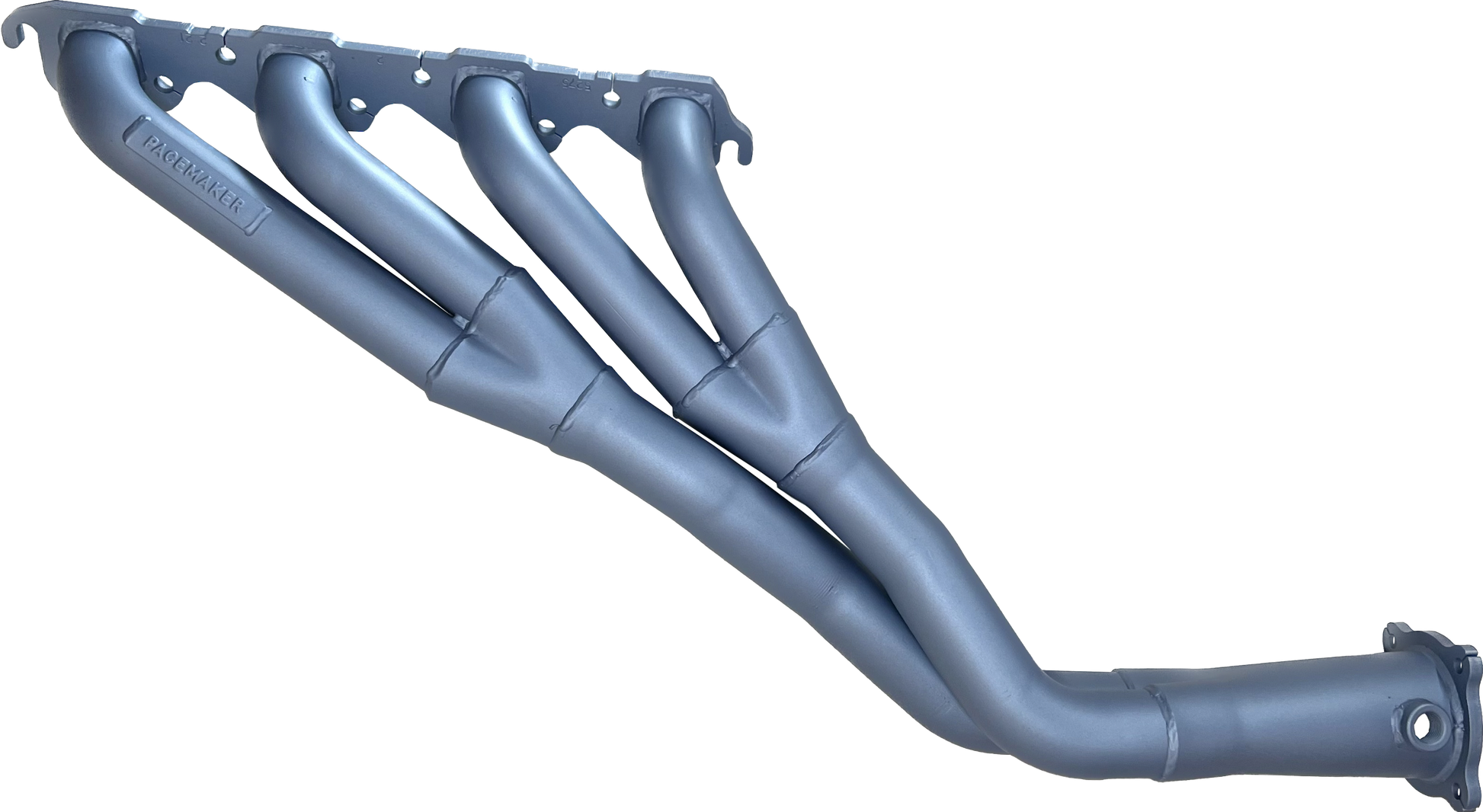

PH 5275 HQ-WB 304-355 (5.0) E.F.I. Head 1 3/4" Competition Header Tri-Y
PH 5275 HQ-WB 304-355 (5.0) E.F.I. Head 1 3/4" Competition Header Tri-Y
Sale price $1,193.01 AUD
Get this installed for you. Find your nearest dealer.
FIND A DEALERProduct Description
Pacemaker Headers to suit
Holden
HQ-HJ-HX-HZ-WB
Fitted with
5 Litre E.F.I. Motor (Engine Conversion - 304 5L Holden V8 from VN, VP, VR, VS or VT Series 1)
or E.F.I. Heads installed onto original Holden V8 253-308 Block
Manual & Automatic Transmissions
TRI-Y design
Important Notes
• Will fit with High Energy Sump
• Will fit with HQ type Mechanical Clutch
• Suitable for 5.7 Litre stroked or super charged motor
These Headers will fit the following gearboxes:
• Australian four speed with cable clutch
• Commodore VN-VS five speed
• Toyota Supra five speed with Hatfield bellhousing
• Holden Trimatic
• Holden Turbo 400
• Holden Turbo 350
• Will fit with High Energy Sump HE2101 Part No.
• Commodore four speed automatic Turbo 700 with
Hatfield rear cross member using Turbo 700 gear box
mounts and 308 engine mounts
Product Specs
| Part #: | PH 5275 | ||
| P/Steering: | Yes | Gasket: | DSF 63 |
| Air Con: | Yes | Primary Pipe: | 1¾" (44mm) |
| Oxy Sen: | Yes | Secondary Pipe: | 2" (51mm) |
| E.G.R: | N/A | Outlet: | 3" (76mm) |
| Y Branch: | N/A | Fitting Time: | 2 Hrs |
